CSA931 - PNP/NPN COMPLEMENTARY PLANAR SILICON TRANSISTORS

The CSA931 by CDIL is a PNP/NPN COMPLEMENTARY PLANAR SILICON TRANSISTORS. Below is the official datasheet preview.

📥 Download Datasheet

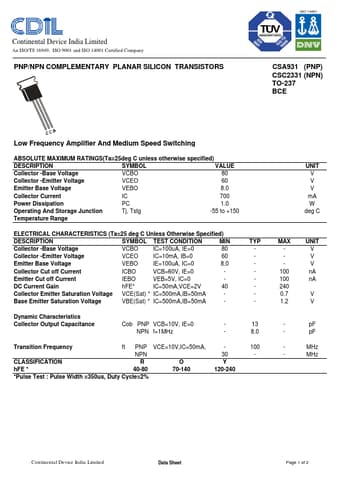

Official preview page of the CSA931 PNP/NPN COMPLEMENTARY PLANAR SILICON TRANSISTORS datasheet (CDIL).

Datasheet Details

Part number CSA931
Manufacturer CDIL
File Size 71.27 KB
Description PNP/NPN COMPLEMENTARY PLANAR SILICON TRANSISTORS
Datasheet download datasheet CSA931-CDIL.pdf
Additional preview pages of the CSA931 datasheet.

CSA931 Product details

Description

SYMBOL VALUE Collector -Base Voltage VCBO 80 Collector -Emitter Voltage VCEO 60 Emitter Base Voltage VEBO 8.0 Collector Current IC 700 Power Dissipation PC 1.0 Operating And Storage Junction Tj, Tstg -55 to +150 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) DESCRIPTION SYMBOL TEST CONDITION MIN Collector -Base Voltage VCBO IC=100uA, IE=0 80 Collector -Emitter Voltage VCEO IC=10mA, IB=0 60 Emitter Base Voltage VEBO IE=100uA
