BAT43WS, BAT42WS - SILICON PLANAR SCHOTTKY BARRIER DIODES

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT43WS, BAT42WS. Please refer to the document for exact specifications by model.

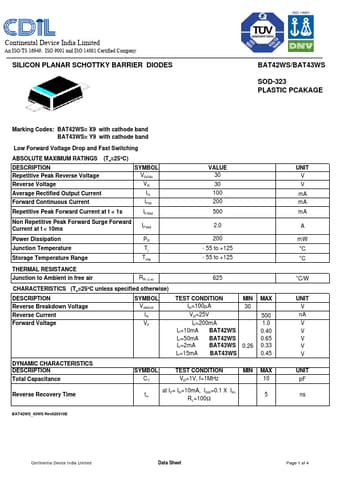

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT43WS, BAT42WS
Manufacturer
CDIL
File Size
369.43 KB
Datasheet
BAT42WS-CDIL.pdf
Description
SILICON PLANAR SCHOTTKY BARRIER DIODES
Note
This datasheet PDF includes multiple part numbers: BAT43WS, BAT42WS.
Please refer to the document for exact specifications by model.

BAT43WS Product details

Description

Repetitive Peak Reverse Voltage Reverse Voltage Average Rectified Output Current Forward Continuous Current SYMBOL VRRM VR IO IFM Repetitive Peak Forward Current at t < 1s IFRM Non Repetitive Peak Forward Surge Forward Current at t < 10ms IFSM Power Dissipation Junction Temperature Storage Temperature Range PD Tj Tstg VALUE 30 30 100 200 500 2.0 200 - 55 to +125 - 55 to +125
