1N757 - SILICON ZENER DIODES

Download the 1N757 datasheet PDF. This datasheet also covers the 1N746 variant, as both devices belong to the same silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Description

SYMBOL VALUE UNIT Zener Voltage ZV 3.3 to 12 V D C Power Dissipation PD 400 mW Derating Above 50 deg C 3.2 mW/deg C Operating & Storage Junction Tj,Tstg -65 to +175 deg C Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless otherwise Specified , VF

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N746-CDIL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N757
Manufacturer CDIL
File Size 138.60 KB
Description SILICON ZENER DIODES
Datasheet download datasheet 1N757 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N757 SILICON 500 mW ZENER DIODES Microsemi
1N757 0.5W Silicon Planar Zener Diodes Micro Commercial Components
1N757 SILICON PLANAR ZENER DIODES GOOD-ARK Electronics
1N757 500mW SILICON ZENER DIODES Jinan Gude Electronic Device
1N757 SILICON PLANAR ZENER DIODES Digitron Semiconductors

Other Datasheets by CDIL

Part Number Description
1N750 SILICON ZENER DIODES
1N751 SILICON ZENER DIODES
1N752 SILICON ZENER DIODES
1N753 SILICON ZENER DIODES
1N754 SILICON ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

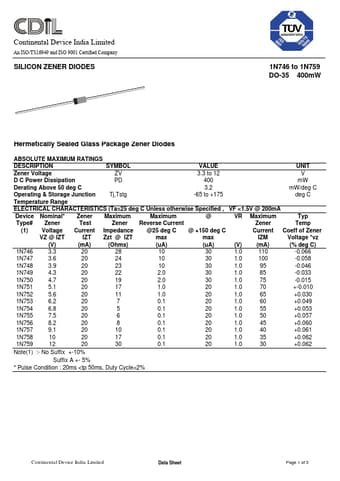

Continental Device India Limited An ISO/TS16949 and ISO 9001 Certified Company SILICON ZENER DIODES 1N746 to 1N759 DO-35 400mW Hermetically Sealed Glass Package Zener Diodes ABSOLUTE MAXIMUM RATINGS DESCRIPTION SYMBOL VALUE UNIT Zener Voltage ZV 3.3 to 12 V D C Power Dissipation PD 400 mW Derating Above 50 deg C 3.2 mW/deg C Operating & Storage Junction Tj,Tstg -65 to +175 deg C Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless otherwise Specified , VF <1.
