NTR4501NT1G - N-Channel MOSFET

Product Overview

📥 Download Datasheet

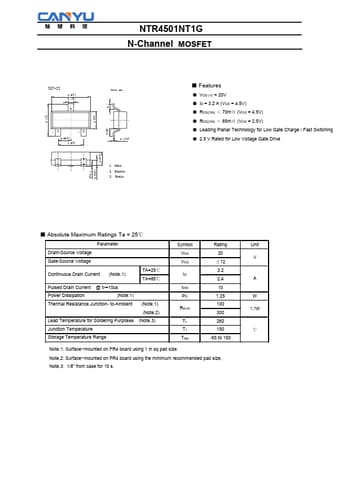

NTR4501NT1G N-Channel MOSFET by CANYU - Datasheet Preview — Datasheet preview – NTR4501NT1G

Datasheet Details

Part number	NTR4501NT1G
Manufacturer	CANYU
File Size	1.50 MB
Description	N-Channel MOSFET
Datasheet	NTR4501NT1G Datasheet
Additional preview pages of the NTR4501NT1G datasheet.

Product details

Features

s.
VDS (V) = 20V.
ID = 3.2 A (VGS = 4.5V).
RDS(ON) ＜ 70mΩ (VGS = 4.5V).
RDS(ON) ＜ 85mΩ (VGS = 2.5V).
Leading Planar Technology for Low Gate Charge / Fast Switching.
2.5 V Rated for Low Voltage Gate Drive +0.12.4 -0.1 0-0.1 +0.10.38 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) TA=25℃ TA=85℃ Pulsed Drain Current @ tP=10us Power Dissipation (Note.1) Thermal Resistance. Junct.
