KPC474x4BD5B7xxxx - SNUBBER CAPACITORS

Download the KPC474x4BD5B7xxxx datasheet PDF. This datasheet also covers the KPC variant, as both devices belong to the same snubber capacitors family and are provided as variant models within a single manufacturer datasheet.

Description

50 11 27.5 - 11 27.5 - 14 27.5 - 17 25.5 8.5 17 25.5 - 17 25.5 11.5 18 - - 17 25.5 8.5 17 25.5 - 17 25.5 11.5 18 - - 28 27.0 11.5 28 39.0 - 18 - - 28 27.0 11.5 28 39.0 - 18 - - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 2

Features

  • Polypropylene as dielectric for achieving low losses.
  • Aluminium foil as electrodes to achieve maximum dv/dt.
  • Special mechanical construction to achieve minimum series inductance.
  • Impregnated elements to eliminate corona.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KPC-CAMELTECHNOLOGY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KPC474x4BD5B7xxxx
Manufacturer CAMEL TECHNOLOGY
File Size 184.34 KB
Description SNUBBER CAPACITORS
Datasheet download datasheet KPC474x4BD5B7xxxx Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KPC410 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER COSMO Electronics
KPC452 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER COSMO Electronics
KPC457 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER COSMO Electronics
KPC484 5PIN IPM DRIVE PHOTOCOUPLER Cosmo
KPC4N33 6PIN PHOTODARLINGTON PHOTOCOUPLER COSMO Electronics

Other Datasheets by CAMEL TECHNOLOGY

Part Number Description
KPC474x4BD5C9xxxA SNUBBER CAPACITORS
KPC474x4AD5B7xxxx SNUBBER CAPACITORS
KPC474x4AD5C9xxxA SNUBBER CAPACITORS
KPC474x4DD5B7xxxx SNUBBER CAPACITORS
KPC474x3CD5B7xxxx SNUBBER CAPACITORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

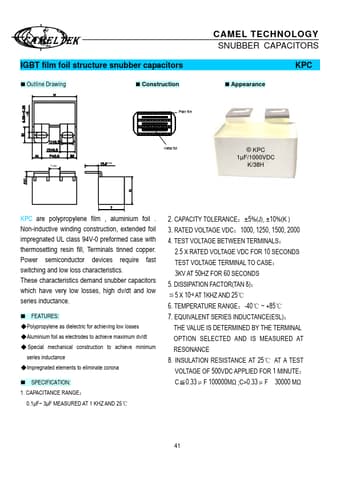

IGBT film foil structure snubber capacitors „ Outline Drawing „ Construction CAMEL TECHNOLOGY SNUBBER CAPACITORS KPC „ Appearance Plain film Y min max Metal foil © KPC 1µF/1000VDC K/38H KPC are polypropylene film , aluminium foil . Non-inductive winding construction, extended foil impregnated UL class 94V-0 preformed case with thermosetting resin fill, Terminals tinned copper. Power semiconductor devices require fast switching and low loss characteristics. These characteristics demand snubber capacitors which have very low losses, high dv/dt and low series inductance.
