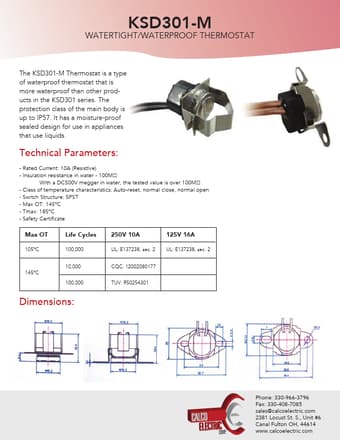

KSD301-M WATERTIGHT/WATERPROOF THERMOSTAT The KSD301-M Thermostat is a type of waterproof thermostat that is more waterproof than other products in the KSD301 series. The protection class of the main body is up to IP57. It has a moisture-proof sealed design for use in appliances that use liquids. Technical Parameters: - Rated Current: 10A (Resistive) - Insulation resistance in water - 100MΩ With a DC500V megger in water, the tested value is over 100MΩ - Class of temperature characteristics: Auto-reset, normal close, normal open - Switch Structure: SPST - Max OT: 145°C - Tmax: 185°C - Safety Certificate Max OT 105°C Life Cycles 100,000 250V 10A UL: E137238, sec. 2 125V 16A UL: E137238, sec.
