SF15 - 1.0 AMP SUPER FAST RECTIFIERS

Features

  • Low forward voltage drop.
  • High current capability.
  • High reliability.
  • High surge current capability 1.0 Ampere DO-41 .107(2.7) .080(2.0) DIA. 1.0(25.4) MIN.

📥 Download Datasheet

Datasheet Details

Part number SF15
Manufacturer Bytes
File Size 161.50 KB
Description 1.0 AMP SUPER FAST RECTIFIERS
Datasheet download datasheet SF15 Datasheet

📁 Similar Datasheet

  • SF15 - 1.0 AMP. SUPER FAST RECTIFIERS (Jinan Gude Electronic Device)
  • SF15 - 1.0 Amp Super Fast Rectifier 50 to 400 Volts (Micro Commercial Components)
  • SF15 - POWER RECTIFIERS(1.0A /50-400V) (Mospec Semiconductor)
  • SF15 - GLASS PASSIVATED SUPER FAST RECTIFIER (GOOD-ARK Electronics)
  • SF15 - 1.0 AMP SUPER FAST RECTIFIERS (Formosa MS)
  • SF15 - TECHNICAL SPECIFICATIONS OF SUPER FAST RECTIFIER (Dc Components)
  • SF15 - SUPER FAST RECTIFIER DIODES (EIC discrete)
  • SF15 - SUPER FAST RECTIFIER (Zowie Technology Corporation)
  • SF15 - SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER (Shanghai Lunsure Electronic Tech)
  • SF15 - SUPER FAST RECOVERY RECTIFIER (RFE)
Other Datasheets by Bytes
  • SF11 - 1.0 AMP SUPER FAST RECTIFIERS
  • SF12 - 1.0 AMP SUPER FAST RECTIFIERS
  • SF13 - 1.0 AMP SUPER FAST RECTIFIERS
  • SF14 - 1.0 AMP SUPER FAST RECTIFIERS
  • SF16 - 1.0 AMP SUPER FAST RECTIFIERS
  • SF161 - 16.0 AMP SUPER FAST RECTIFIERS
  • SF162 - 16.0 AMP SUPER FAST RECTIFIERS
  • SF163 - 16.0 AMP SUPER FAST RECTIFIERS

Full PDF Text Transcription

Click to expand full text

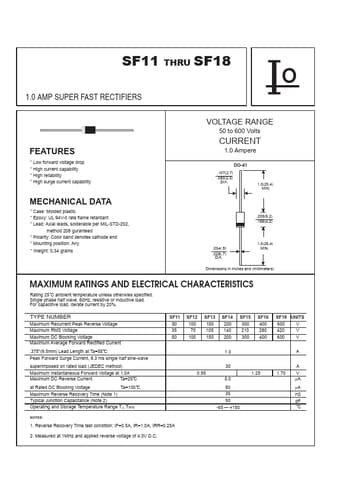

SF11 1.0 AMP SUPER FAST RECTIFIERS THRU SF18 VOLTAGE RANGE 50 to 600 Volts CURRENT FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability 1.0 Ampere DO-41 .107(2.7) .080(2.0) DIA. 1.0(25.4) MIN. MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.34 grams .205(5.2) .166(4.2) .034(.9) .028(.7) DIA. 1.0(25.4) MIN. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load.
