RS404L SINGLE PHASE 4.0 AMP BRIDGE RECTIFIERS

RS404L Description

RS401L THRU RS407L SINGLE PHASE 4.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes .

RS404L Features

* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 4.8 grams .052(1.3) .048(1.2) DIA. .083 (2.1) .580(14.7) .540(13.7) RS-4L .640(16.3) .600(15.2) .750 MIN. (19.0) .220(5.6) SPACING .

📥 Download Datasheet

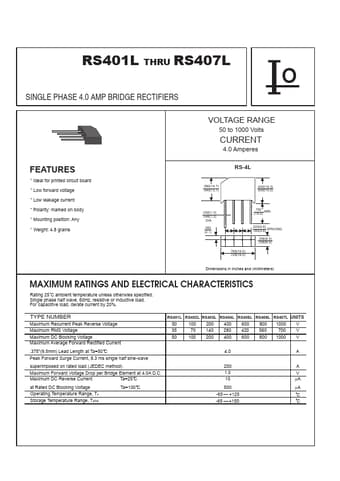

Preview of RS404L PDF
datasheet Preview Page 2

Datasheet Details

Part number
RS404L
Manufacturer
Bytes
File Size
146.17 KB
Datasheet
RS404L_Bytes.pdf
Description
SINGLE PHASE 4.0 AMP BRIDGE RECTIFIERS
