OPA699, OPA699_Burr - Wideband / High Gain VOLTAGE LIMITING AMPLIFIER

OPA699 Description

OPA699 OPA 699 SBOS261B * NOVEMBER 2002 * REVISED OCTOBER 2003 Wideband, High Gain VOLTAGE LIMITING AMPLIFIER .
The OPA699 is a wideband, voltage-feedback op amp that offers bipolar output voltage limiting, and is stable for gains ≥ +4.

OPA699 Features

* q q q q q q q q q HIGH LINEARITY NEAR LIMITING FAST RECOVERY FROM OVERDRIVE: 1ns LIMITING VOLTAGE ACCURACY: ±10mV

OPA699 Applications

* q TRANSIMPEDANCE WITH FAST OVERDRIVE RECOVERY q FAST LIMITING ADC INPUT DRIVER q LOW PROP DELAY COMPARATOR q NONLINEAR ANALOG SIGNAL PROCESSING q DIFFERENCE AMPLIFIER q IF LIMITING AMPLIFIER q OPA689 UPGRADE the signal channel. Implementing the limiting function at the output, as opposed to the inpu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA699, OPA699_Burr. Please refer to the document for exact specifications by model.

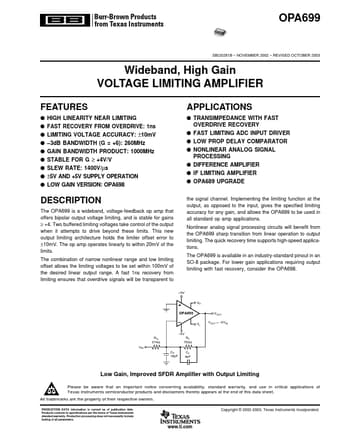

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA699, OPA699_Burr
Manufacturer
Burr-Brown
File Size
461.21 KB
Datasheet
OPA699_Burr-BrownCorporation.pdf
Description
Wideband / High Gain VOLTAGE LIMITING AMPLIFIER
Note
This datasheet PDF includes multiple part numbers: OPA699, OPA699_Burr.
Please refer to the document for exact specifications by model.
