OPA340 - OPERATIONAL AMPLIFIER

Download the OPA340 datasheet PDF. This datasheet also covers the OPA340_Burr variant, as both devices belong to the same operational amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

OPA340 series rail-to-rail CMOS operational amplifiers are optimized for low voltage, single supply operation.

Rail-to-rail input/output and high speed operation make them ideal for driving sampling analog-to-digital converters.

Features

  • q q q q q q q q RAIL-TO-RAIL INPUT RAIL-TO-RAIL OUTPUT (within 1mV) MicroSIZE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPA340_Burr-BrownCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
OPA340 Operational Amplifier Texas Instruments
OPA340-EP Operational Amplifier Texas Instruments
OPA344 Operational Amplifier Texas Instruments
OPA345 Operational Amplifier Texas Instruments
OPA348 CMOS Operational Amplifier Texas Instruments

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
OPA341 OPERATIONAL AMPLIFIER
OPA342 OPERATIONAL AMPLIFIER
OPA343 OPERATIONAL AMPLIFIER
OPA344 OPERATIONAL AMPLIFIER
OPA345 OPERATIONAL AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

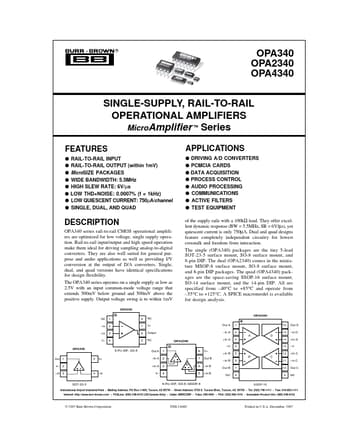

® OPA OPA 340 OPA 2340 434 0 OPA 434 OPA340 OPA2340 OPA4340 0 SINGLE-SUPPLY, RAIL-TO-RAIL OPERATIONAL AMPLIFIERS MicroAmplifier ™ Series FEATURES q q q q q q q q RAIL-TO-RAIL INPUT RAIL-TO-RAIL OUTPUT (within 1mV) MicroSIZE PACKAGES WIDE BANDWIDTH: 5.5MHz HIGH SLEW RATE: 6V/µs LOW THD+NOISE: 0.0007% (f = 1kHz) LOW QUIESCENT CURRENT: 750µA/channel SINGLE, DUAL, AND QUAD APPLICATIONS q DRIVING A/D CONVERTERS q PCMCIA CARDS q DATA ACQUISITION q PROCESS CONTROL q AUDIO PROCESSING q COMMUNICATIONS q ACTIVE FILTERS q TEST EQUIPMENT of the supply rails with a 100kΩ load. They offer excellent dynamic response (BW = 5.5MHz, SR = 6V/µs), yet quiescent current is only 750µA. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
