OPA335 - 0.05UV/C max / SINGLE-SUPPLY CMOS OPERATIONAL AMPLIFIERS

Download the OPA335 datasheet PDF. This datasheet also covers the OPA335_Burr variant, as both devices belong to the same 0.05uv/c max / single-supply cmos operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

Description

The OPA334 and OPA335 series of CMOS operational amplifiers use auto-zeroing techniques to simultaneously provide very low offset voltage (5µV max), and near-zero drift over time and temperature.

Features

  • q q q q q q q LOW OFFSET.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPA335_Burr-BrownCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
OPA3355 CMOS Operational Amplifier Texas Instruments
OPA330 CMOS Operational Amplifier Texas Instruments
OPA333 CMOS Operational Amplifier Texas Instruments
OPA333 CMOS OPERATIONAL AMPLIFIERS Burr-Brown Corporation
OPA333-Q1 CMOS Operational Amplifier Texas Instruments

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
OPA334 0.05UV/C max / SINGLE-SUPPLY CMOS OPERATIONAL AMPLIFIERS
OPA336 CMOS OPERATIONAL AMPLIFIERS
OPA337 CMOS OPERATIONAL AMPLIFIER
OPA338 CMOS OPERATIONAL AMPLIFIER
OPA300 CMOS OPERATIONAL AMPLIFIER

Full PDF Text Transcription

Click to expand full text

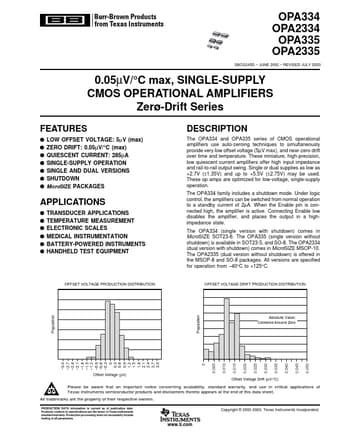

OPA3 35 OPA2 335 OPA2 334 OPA23 35 OPA334 OPA2334 OPA335 OPA2335 SBOS245D – JUNE 2002 – REVISED JULY 2003 0.05µV/°C max, SINGLE-SUPPLY CMOS OPERATIONAL AMPLIFIERS Zerø-Drift Series FEATURES q q q q q q q LOW OFFSET VOLTAGE: 5µV (max) ZERO DRIFT: 0.05µV/°C (max) QUIESCENT CURRENT: 285µA SINGLE-SUPPLY OPERATION SINGLE AND DUAL VERSIONS SHUTDOWN MicroSIZE PACKAGES DESCRIPTION The OPA334 and OPA335 series of CMOS operational amplifiers use auto-zeroing techniques to simultaneously provide very low offset voltage (5µV max), and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high input impedance and rail-to-rail output swing. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used.
