OPA2356, OPA2356_Burr - 200MHz / CMOS OPERATIONAL AMPLIFIER

OPA2356 Description

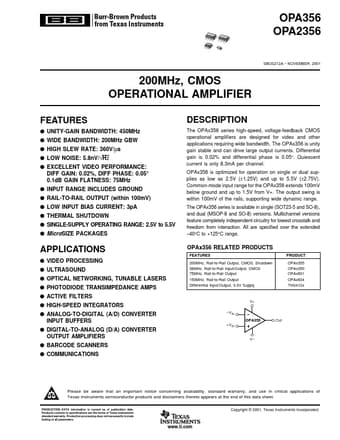

OPA 356 OPA 2356 OPA356 OPA2356 SBOS212A * NOVEMBER, 2001 OPA2 356 200MHz, CMOS OPERATIONAL AMPLIFIER .
The OPAx356 series high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth.

OPA2356 Features

* q UNITY-GAIN BANDWIDTH: 450MHz q WIDE BANDWIDTH: 200MHz GBW q HIGH SLEW RATE: 360V/µs q LOW NOISE: 5.8nV/√Hz q EXCELLENT VIDEO PERFORMANCE: DIFF GAIN: 0.02%, DIFF PHASE: 0.05° 0.1dB GAIN FLATNESS: 75MHz q INPUT RANGE INCLUDES GROUND q RAIL-TO-RAIL OUTPUT (within 100mV) q LOW INPUT BIAS CURRENT: 3pA

OPA2356 Applications

* requiring wide bandwidth. The OPAx356 is unity gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.05°. Quiescent current is only 8.3mA per channel. OPAx356 is optimized for operation on single or dual supplies as low as 2.5V (±1.25V) and up to 5.5

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA2356, OPA2356_Burr. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA2356, OPA2356_Burr
Manufacturer
Burr-Brown
File Size
263.54 KB
Datasheet
OPA2356_Burr-BrownCorporation.pdf
Description
200MHz / CMOS OPERATIONAL AMPLIFIER
Note
This datasheet PDF includes multiple part numbers: OPA2356, OPA2356_Burr.
Please refer to the document for exact specifications by model.
