OPA2343 - OPERATIONAL AMPLIFIER

Download the OPA2343 datasheet PDF. This datasheet also covers the OPA2343_Burr variant, as both devices belong to the same operational amplifier family and are provided as variant models within a single manufacturer datasheet.

General Description

OPA343 series rail-to-rail CMOS operational amplifiers are designed for low cost, miniature applications.

They are optimized for low voltage, single supply operation.

Rail-to-rail input/output and high speed operation make them ideal for driving sampling analog-to-digital converters.

Key Features

  • q q q q q q q RAIL-TO-RAIL INPUT/OUTPUT MicroSIZE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPA2343_Burr-BrownCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
OPA2340 Operational Amplifier Texas Instruments
OPA2344 Operational Amplifier Texas Instruments
OPA2345 Operational Amplifier Texas Instruments
OPA2348 CMOS Operational Amplifier Texas Instruments
OPA2348-Q1 CMOS Operational Amplifier Texas Instruments

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
OPA234 SINGLE-SUPPLY OPERATIONAL AMPLIFIERS
OPA2340 OPERATIONAL AMPLIFIER
OPA2341 OPERATIONAL AMPLIFIER
OPA2342 OPERATIONAL AMPLIFIER
OPA2344 OPERATIONAL AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

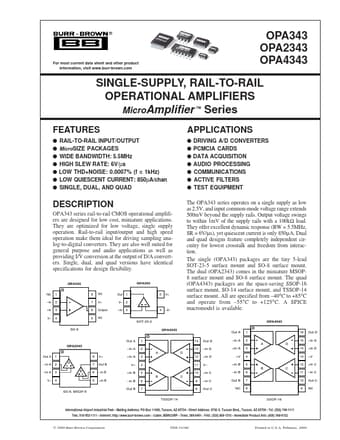

® OPA ® OPA 234 3 434 3 OPA 434 3 For most current data sheet and other product information, visit www.burr-brown.com OPA343 OPA2343 OPA4343 SINGLE-SUPPLY, RAIL-TO-RAIL OPERATIONAL AMPLIFIERS MicroAmplifier ™ Series FEATURES q q q q q q q RAIL-TO-RAIL INPUT/OUTPUT MicroSIZE PACKAGES WIDE BANDWIDTH: 5.5MHz HIGH SLEW RATE: 6V/µs LOW THD+NOISE: 0.0007% (f = 1kHz) LOW QUIESCENT CURRENT: 850µA/chan SINGLE, DUAL, AND QUAD APPLICATIONS q DRIVING A/D CONVERTERS q PCMCIA CARDS q DATA ACQUISITION q AUDIO PROCESSING q COMMUNICATIONS q ACTIVE FILTERS q TEST EQUIPMENT The OPA343 series operates on a single supply as low as 2.5V, and input common-mode voltage range extends 500mV beyond the supply rails. Output voltage swings to within 1mV of the supply rails with a 100kΩ load.
