BUF04701 - CMOS BUFFER AMPLIFIER

Download the BUF04701 datasheet PDF. This datasheet also covers the BUF04701_Burr variant, as both devices belong to the same cmos buffer amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

The BUF04701 is a 4-channel, low-power, high-voltage railto-rail input/output buffer.

Operating on supplies ranging from 3.5V to 12V (±1.75V to ±6V), the BUF04701 has a 3dB bandwidth of 8MHz with a slew rate of 10V/µs, and requires only 1.1mA quiescent current.

Features

  • q UNITY GAIN BUFFER q RAIL-TO-RAIL INPUT/OUTPUT q WIDE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BUF04701_Burr-Brown.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BUF04 Closed-Loop High Speed Buffer Analog Devices
BUF03 High Speed Voltage Follower/Buffer Analog Devices
BUF05703 Multi-Channel LCD Gamma Correction Buffer Texas Instruments
BUF06703 Multi-Channel LCD Gamma Correction Buffer Texas Instruments
BUF07703 Multi-Channel LCD Gamma Correction Buffer Texas Instruments

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
BUF01900 Programmable Voltage Source
BUF01901 Programmable Voltage Source
BUF05703 (BUF0x703) MULTI-CHANNEL LEC GAMMA CORRECTION BUFFER
BUF05704 18-V SUPPLY MULTI-CHANNEL GAMMA CORRECTION BUFFER
BUF06703 (BUF0x703) MULTI-CHANNEL LEC GAMMA CORRECTION BUFFER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

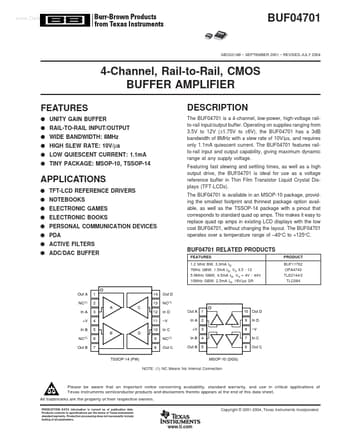

www.DataSheet4U.com 0470 1A ® BUF04701 SBOS214B – SEPTEMBER 2001 – REVISED JULY 2004 4-Channel, Rail-to-Rail, CMOS BUFFER AMPLIFIER FEATURES q UNITY GAIN BUFFER q RAIL-TO-RAIL INPUT/OUTPUT q WIDE BANDWIDTH: 8MHz q HIGH SLEW RATE: 10V/µs q LOW QUIESCENT CURRENT: 1.1mA q TINY PACKAGE: MSOP-10, TSSOP-14 DESCRIPTION The BUF04701 is a 4-channel, low-power, high-voltage railto-rail input/output buffer. Operating on supplies ranging from 3.5V to 12V (±1.75V to ±6V), the BUF04701 has a 3dB bandwidth of 8MHz with a slew rate of 10V/µs, and requires only 1.1mA quiescent current. The BUF04701 features railto-rail input and output capability, giving maximum dynamic range at any supply voltage.
