XTR114, XTR114_Burr 4-20mA CURRENT TRANSMITTERS

XTR114 Description

® XTR XTR 114 112 XTR112 XTR114 4-20mA CURRENT TRANSMITTERS with Sensor Excitation and Linearization .
The XTR112 and XTR114 are monolithic 4-20mA, two-wire current transmitters.

XTR114 Features

* q LOW UNADJUSTED ERROR q PRECISION CURRENT SOURCES XTR112: Two 250µA XTR114: Two 100µA q RTD OR BRIDGE EXCITATION q LINEARIZATION q TWO OR THREE-WIRE RTD OPERATION q LOW OFFSET DRIFT: 0.4µV/°C q LOW OUTPUT CURRENT NOISE: 30nAp-p q HIGH PSR: 110dB min q HIGH CMR: 86dB min q WIDE SUPPLY RANGE: 7.5V TO

XTR114 Applications

* q q q q INDUSTRIAL PROCESS CONTROL FACTORY AUTOMATION SCADA REMOTE DATA ACQUISITION REMOTE TEMPERATURE AND PRESSURE TRANSDUCERS Pt1000 NONLINEARITY CORRECTION USING XTR112 and XTR114 5 4 Nonlinearity (%) 3 2 1 0
* 1
* 200°C Process Temperature (°C) +850°C Uncorrected RTD Nonlinearity

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: XTR114, XTR114_Burr. Please refer to the document for exact specifications by model.

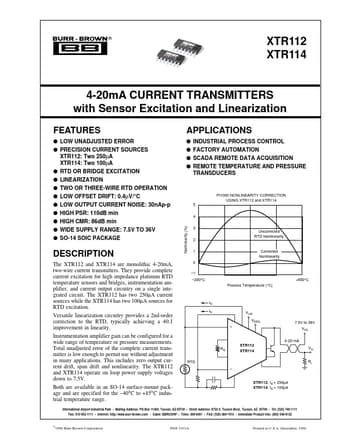

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XTR114, XTR114_Burr
Manufacturer
Burr-Brown Corporation
File Size
255.10 KB
Datasheet
XTR114_Burr-BrownCorporation.pdf
Description
4-20mA CURRENT TRANSMITTERS
Note
This datasheet PDF includes multiple part numbers: XTR114, XTR114_Burr.
Please refer to the document for exact specifications by model.
