OPT202, OPT202_Burr PHOTODIODE

OPT202 Description

® OPT202 FPO PHOTODIODE WITH ON-CHIP AMPLIFIER .
The OPT202 is an opto-electronic integrated circuit containing a photodiode and transimpedance amplifier on a single dielectrically isolated chip.

OPT202 Features

* q BANDWIDTH: 50kHz q PHOTODIODE SIZE: 0.090 x 0.090 inch (2.29 x 2.29mm) q 1MΩ FEEDBACK RESISTOR q HIGH RESPONSIVITY: 0.45A/W (650nm) q LOW DARK ERRORS: 2mV q WIDE SUPPLY RANGE: ±2.25 to ±18V q LOW QUIESCENT CURRENT: 400µA q TRANSPARENT 8-PIN DIP AND 5-PIN SIP q HERMETIC 8-PIN CERAMIC DIP DESCRIPTI

OPT202 Applications

* q MEDICAL INSTRUMENTATION q LABORATORY INSTRUMENTATION q POSITION AND PROXIMITY SENSORS q PHOTOGRAPHIC ANALYZERS q SMOKE DETECTORS Ultraviolet Red 2 (Pin available on DIP only) 1MΩ 3pF Green Yellow Infrared Voltage Output (V/µW) 4 (4) 0.5 0.4 0.3 0.2 0.1 0 100 Using Internal 1MΩ Resistor 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPT202, OPT202_Burr. Please refer to the document for exact specifications by model.

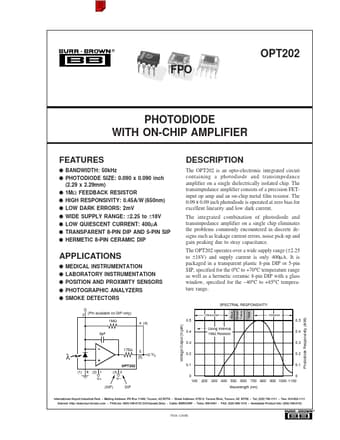

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPT202, OPT202_Burr
Manufacturer
Burr-Brown Corporation
File Size
175.66 KB
Datasheet
OPT202_Burr-BrownCorporation.pdf
Description
PHOTODIODE
Note
This datasheet PDF includes multiple part numbers: OPT202, OPT202_Burr.
Please refer to the document for exact specifications by model.
