OPA2727 High Precision CMOS Operational Amplifier

The OPA727 and OPA728 series op amps use a state-of-the-art 12V analog CMOS process and e-trim, a package-level trim, offering outstanding dc precision and ac performance. The extremely low offset (150µV max) and drift (1.5µV/°C) are achieved by trimming the IC digitally after packaging to avoid the.

OPA2727 Features

* OFFSET: 15µV (typ), 150µV (max)

* DRIFT: 0.3µV/°C (typ), 1.5µV/°C (max)

* BANDWIDTH: 20MHz

* SLEW RATE: 30V/µs

* BIAS CURRENT: 500pA (max)

* LOW NOISE: 6nV/√Hz at 100kHz

* THD+N: 0.0003% at 1kHz

* QUIESCENT CURRENT: 4.3mA/ch

OPA728_Burr-BrownCorporation.pdf

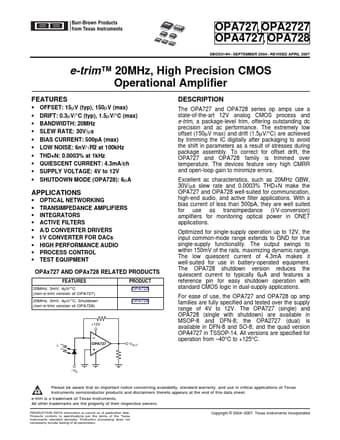

OPA2727 Datasheet Preview — This datasheet PDF includes multiple part numbers: OPA2727, OPA728_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OPA2727, OPA728_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

1.69 MB

Description:

High precision cmos operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA2727, OPA728_Burr.
Please refer to the document for exact specifications by model.
