INA115 - Precision INSTRUMENTATION AMPLIFIER

Download the INA115 datasheet PDF. This datasheet also covers the INA115_Burr variant, as both devices belong to the same precision instrumentation amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

The INA115 is a low cost, general purpose instrumentation amplifier offering excellent accuracy.

Its versatile three-op amp design and small size make it ideal for a wide range of applications.

Features

  • q LOW OFFSET.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (INA115_Burr-BrownCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
INA114 Precision Instrumentation Amplifier Texas Instruments
INA117 High Common-Mode Voltage Difference Amplifier Texas Instruments
INA118 Low-Power Instrumentation Amplifier Texas Instruments
INA101 Low-Power Instrumentation Amplifier AnalogySemi
INA102 Low-Power Instrumentation Amplifier AnalogySemi

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
INA110 Fast-Settling FET-Input INSTRUMENTATION AMPLIFIER
INA111 High Speed FET-Input INSTRUMENTATION AMPLIFIER
INA114 Precision INSTRUMENTATION AMPLIFIER
INA116 Ultra Low Input Bias Current INSTRUMENTATION AMPLIFIER
INA117 High Common-Mode Voltage DIFFERENCE AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

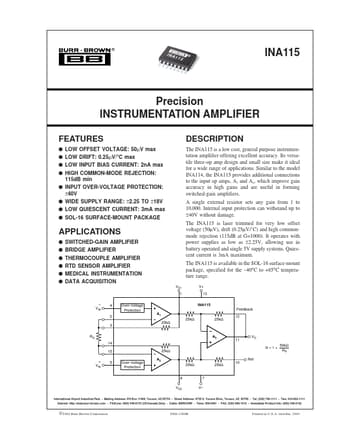

® INA 115 INA115 Precision INSTRUMENTATION AMPLIFIER FEATURES q LOW OFFSET VOLTAGE: 50µV max q LOW DRIFT: 0.25µV/°C max q LOW INPUT BIAS CURRENT: 2nA max q HIGH COMMON-MODE REJECTION: 115dB min q INPUT OVER-VOLTAGE PROTECTION: ±40V q WIDE SUPPLY RANGE: ±2.25 TO ±18V q LOW QUIESCENT CURRENT: 3mA max q SOL-16 SURFACE-MOUNT PACKAGE DESCRIPTION The INA115 is a low cost, general purpose instrumentation amplifier offering excellent accuracy. Its versatile three-op amp design and small size make it ideal for a wide range of applications. Similar to the model INA114, the INA115 provides additional connections to the input op amps, A1 and A2, which improve gain accuracy in high gains and are useful in forming switched-gain amplifiers. A single external resistor sets any gain from 1 to 10,000.
