DAC7613 - 12-Bit/ Voltage Output DIGITAL-TO-ANALOG CONVERTER

Download the DAC7613 datasheet PDF. This datasheet also covers the DAC variant, as both devices belong to the same 12-bit/ voltage output digital-to-analog converter family and are provided as variant models within a single manufacturer datasheet.

Description

The DAC7613 is a 12-bit, voltage output digital-toanalog converter with guaranteed 12-bit monotonic performance over the specified temperature range.

The DAC7613 accepts a 12-bit parallel input data, has double-buffered DAC input logic and provides a readback mode of the internal input register.

Features

  • q LOW POWER: 1.8mW q.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DAC-7613.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DAC7616 DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC7617 DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC7632 DIGITAL-TO-ANALOG CONVERTER Texas Instruments
DAC7634 DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC7642 DIGITAL-TO-ANALOG CONVERTER Burr-Brown

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
DAC7611 12-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER
DAC7612 Dual/ 12-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER
DAC7614 DIGITAL-TO-ANALOG CONVERTER
DAC7615 DIGITAL-TO-ANALOG CONVERTER
DAC7621 12-Bit/ Parallel Input DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

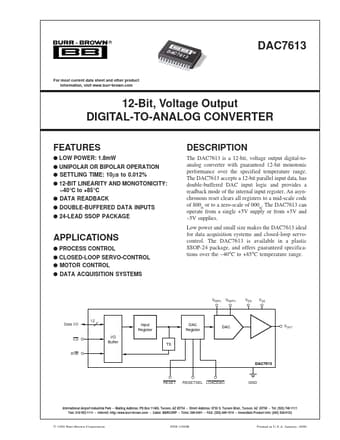

® DAC 761 3 DAC7613 For most current data sheet and other product information, visit www.burr-brown.com 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER FEATURES q LOW POWER: 1.8mW q UNIPOLAR OR BIPOLAR OPERATION q SETTLING TIME: 10µs to 0.012% q 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C q DATA READBACK q DOUBLE-BUFFERED DATA INPUTS q 24-LEAD SSOP PACKAGE DESCRIPTION The DAC7613 is a 12-bit, voltage output digital-toanalog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7613 accepts a 12-bit parallel input data, has double-buffered DAC input logic and provides a readback mode of the internal input register. An asynchronous reset clears all registers to a mid-scale code of 800H or to a zero-scale of 000H.
