AFE1103 - HDSL/MDSL ANALOG FRONT END

Download the AFE1103 datasheet PDF. This datasheet also covers the AFE1103_Burr variant, as both devices belong to the same hdsl/mdsl analog front end family and are provided as variant models within a single manufacturer datasheet.

Description

Burr-Brown’s Analog Front End greatly reduces the size and cost of an HDSL or MDSL system by providing all of the active analog circuitry needed to connect the Brooktree Bt8952 HDSL digital signal processor to an external compromise hybrid and a 1:2 HDSL line transformer.

Features

  • q.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AFE1103_Burr-BrownCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
AFE1024600I-10.1N-9296A-N LCD Module ORIENT DISPLAY
AFE1024768I-14.0N-9297A-N LCD Module ORIENT DISPLAY
AFE1025Q ESD Protection Array Alfa-MOS
AFE1065L ESD Protection Array Alfa-MOS
AFE1065P Ultra Low Capacitance 7-Line ESD Protection Array Alfa-MOS

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
AFE1104E HDSL/MDSL ANALOG FRONT END
AFE1105 HDSL/MDSL ANALOG FRONT END
AFE1115 HDSL/MDSL ANALOG FRONT END WITH VCXO
AFE1124 HDSL/MDSL ANALOG FRONT END
AFE1144 HDSL/MDSL ANALOG FRONT END

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

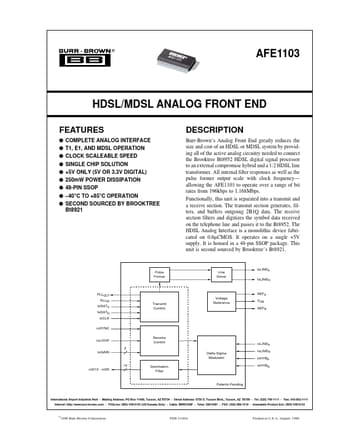

® AFE 110 3 AFE1103 HDSL/MDSL ANALOG FRONT END FEATURES q COMPLETE ANALOG INTERFACE q T1, E1, AND MDSL OPERATION q CLOCK SCALEABLE SPEED q SINGLE CHIP SOLUTION q +5V ONLY (5V OR 3.3V DIGITAL) q 250mW POWER DISSIPATION q 48-PIN SSOP q –40°C TO +85°C OPERATION q SECOND SOURCED BY BROOKTREE Bt8921 DESCRIPTION Burr-Brown’s Analog Front End greatly reduces the size and cost of an HDSL or MDSL system by providing all of the active analog circuitry needed to connect the Brooktree Bt8952 HDSL digital signal processor to an external compromise hybrid and a 1:2 HDSL line transformer. All internal filter responses as well as the pulse former output scale with clock frequency— allowing the AFE1103 to operate over a range of bit rates from 196kbps to 1.168Mbps.
