UW2453L, UW2453 - Single Chip Transceiver

The UW2453L by Bubec is a Single Chip Transceiver. Below is the official datasheet preview.

UW2453L Single Chip Transceiver by Bubec - Datasheet Preview — Official preview page of the **UW2453L** Single Chip Transceiver datasheet (Bubec).

Datasheet Details

Part number	UW2453L, UW2453
Manufacturer	Bubec
File Size	844.61 KB
Description	Single Chip Transceiver
Datasheet	UW2453_Bubec.pdf
Note	This datasheet PDF includes multiple part numbers: UW2453L, UW2453. Please refer to the document for exact specifications by model.

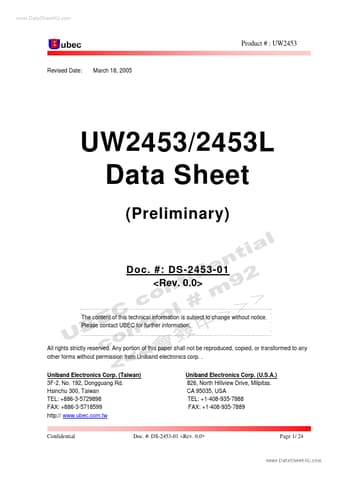

Additional preview pages of the UW2453L datasheet.

UW2453L Product details

Description

of Change Confidential Doc.#: DS-2453-01 Page 2/ 24 www.DataSheet4U.com Product # : UW2453 1 Product Description The UW2453 is a fully integrated single-chip transceiver (including PA) specifically designed for IEEE802.11b/g wireless local area networks (WLANs) applications.It supports data rate 6, 9, 12, 18, 24, 36, 48 and 54 Mbits/s in OFDM mode, 5.5 and 11 Mbits/s in CCK mode, 1 and 2 Mbits/s in DSSS mode.The UW2453 integrates a receiver, transmitter, VCO and PLL as well

Features

IEEE 802.11 b/g specification compliant 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s in OFDM mode 1, 2, 5.5 and 11 Mbits/s in DSSS and CCK mode 2.4 to 2.5 GHz frequency operation.
87 dBm sensitivity at 11 Mbits/s CCK mode.
73 dBm sensitivity at 54M bits/s OFDM mode High performance and low power consumption Zero IF receive and direct conversion transmit architecture Integrated low phase noise VCO and PLL loop filter Integrated power amplifier Shared RX and TX filter structure to minimi.
