SS20PU80 - High Current Density Surface Mount Ultra Low VF Schottky Rectifier

SS20PU80 Description

SS20PU80 Product profile High Current Density Surface Mount Ultra Low VF Schottky Rectifier General .
Rectifiers 20 Amp 80V Features Very low profile - typical height of 1.

SS20PU80 Features

* Very low profile - typical height of 1.1 mm Ideal for automated placement Low forward voltage drop, low power losses High efficiency Low thermal resistance Meets MSL level 1, per J-STD-020 Solder dip 260 °C max. 10 s, per JESD 22-A111 Compliant to RoHS directive 2002/95/EC and in accordance to WEEE

SS20PU80 Applications

* are based on Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particul

📥 Download Datasheet

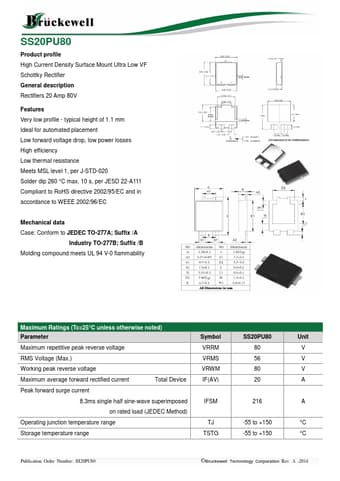

Preview of SS20PU80 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS20PU80
Manufacturer
Bruckewell
File Size
146.80 KB
Datasheet
SS20PU80-Bruckewell.pdf
Description
High Current Density Surface Mount Ultra Low VF Schottky Rectifier
