SB52 - 5.0 Amp Schottky Barrier Rectifiers

Datasheet Summary

Features

Low forward voltage drop.
High current capability.
High reliability.
High surge current capability.
Epitaxial construction.
RoHS compliant package Mechanical Data.
Case: DO-201AD,.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Lead solderable per MIL-STD-202, method 208 guaranteed.
Mounting position: Any.
Weight: 1.10 grams(Approximately) Packing & Order Information 3,.

Bruckewell

📥 Download Datasheet

Datasheet Details

Part number	SB52
Manufacturer	Bruckewell
File Size	394.10 KB
Description	5.0 Amp Schottky Barrier Rectifiers
Datasheet	SB52 Datasheet

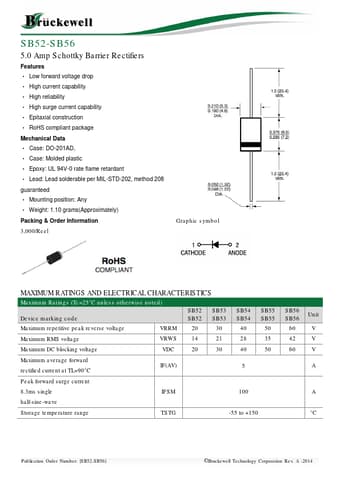

Additional preview pages of the SB52 datasheet.

📁 Similar Datasheet

SB520 - 5.0A SCHOTTKY BARRIER DIODE (WON-TOP)
SB520 - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
SB520 - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
SB520 - 5.0A SCHOTTKY BARRIER RECTIFIER (FAGOR)
SB520 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH ELECTRONICS)
SB520 - SCHOTTKY BARRIER RECTIFIERS (PAN JIT)
SB520 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC)
SB520 - 5.0A SCHOTTKY BARRIER RECTIFIER (Diodes)
SB520 - Schottky Barrier Plastic Rectifier (Vishay)
SB520 - Schottky Rectifiers (Fairchild Semiconductor)

Other Datasheets by Bruckewell

SB510UL - Surface Mount High Current Density Schottky
SB53 - 5.0 Amp Schottky Barrier Rectifiers
SB54 - 5.0 Amp Schottky Barrier Rectifiers
SB55 - 5.0 Amp Schottky Barrier Rectifiers
SB56 - 5.0 Amp Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

SB52-SB56 5.0 Amp Schottky Barrier Rectifiers Features • Low forward voltage drop • High current capability • High reliability • High surge current capability • Epitaxial construction • RoHS compliant package Mechanical Data • Case: DO-201AD, • Case: Molded plastic • Epoxy: UL 94V-0 rate flame retardant • Lead: Lead solderable per MIL-STD-202, method 208 guaranteed • Mounting position: Any • Weight: 1.
