MSF10N80 - 800V N-Channel MOSFET

Bruckewell

The MSF10N80 by Bruckewell is a 800V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

MSF10N80 800V N-Channel MOSFET by Bruckewell - Datasheet Preview — Official preview page of the **MSF10N80** 800V N-Channel MOSFET datasheet (Bruckewell).

Datasheet Details

Part number	MSF10N80
Manufacturer	Bruckewell
File Size	820.19 KB
Description	800V N-Channel MOSFET
Datasheet	MSF10N80-Bruckewell.pdf

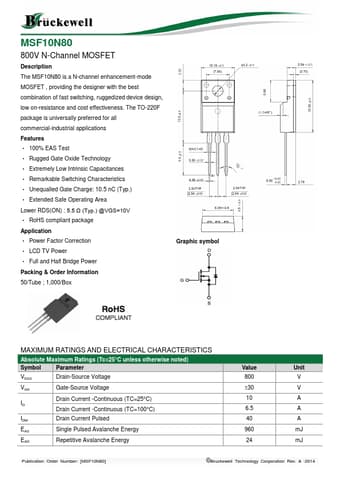

Additional preview pages of the MSF10N80 datasheet.

MSF10N80 Product details

Description

The MSF10N80 is a N-channel enhancement-mode MOSFET , providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness.

Features

100% EAS Test.
Rugged Gate Oxide Technology.
Extremely Low Intrinsic Capacitances.
Remarkable Switching Characteristics.
Unequalled Gate Charge: 10.5 nC (Typ. ).
Extended Safe Operating Area Lower RDS(ON) : 5.5 Ω (Typ. ) @VGS=10V.
RoHS compliant package.
