MBRF10200CT - High-Voltage Schottky Rectifier

Product Overview

Bruckewell

Datasheet Details

Part number	MBRF10200CT
Manufacturer	Bruckewell
File Size	399.96 KB
Description	High-Voltage Schottky Rectifier
Datasheet	MBRF10200CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MBRF10200CT, MBRF10150CT. Please refer to the document for exact specifications by model.

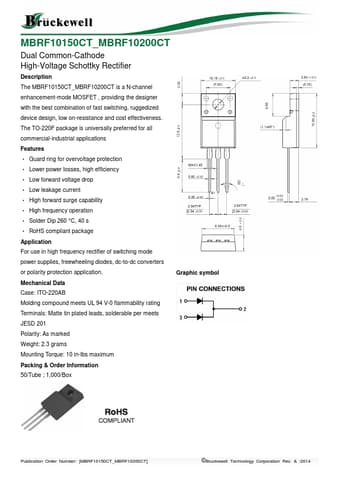

Additional preview pages of the MBRF10200CT datasheet.

Product details

Description

The MBRF10150CT_MBRF10200CT is a N-channel enhancement-mode MOSFET , providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness.The TO-220F package is universally preferred for all commercial-industrial applications

Features

Guard ring for overvoltage protection.
Lower power losses, high efficiency.
Low forward voltage drop.
Low leakage current.
High forward surge capability.
High frequency operation.
Solder Dip 260 °C, 40 s.
RoHS compliant package.
