ESD3Z15C, ESD3Z5C - Transient Voltage Suppressors

Bruckewell

📥 Download Datasheet

ESD3Z15C Datasheet Preview — This datasheet PDF includes multiple part numbers: ESD3Z15C, ESD3Z5C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ESD3Z15C, ESD3Z5C
Manufacturer	Bruckewell
File Size	393.25 KB
Description	Transient Voltage Suppressors
Datasheet	ESD3Z5C-Bruckewell.pdf
Note	This datasheet PDF includes multiple part numbers: ESD3Z15C, ESD3Z5C. Please refer to the document for exact specifications by model.

ESD3Z15C Product details

Description

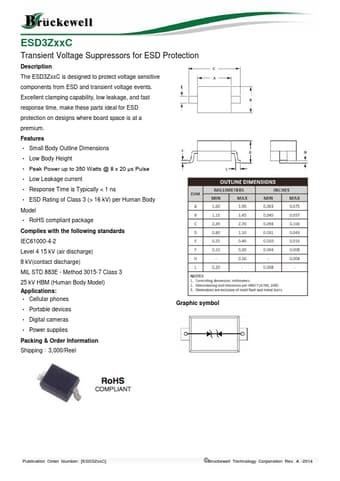

The ESD3ZxxC is designed to protect voltage sensitive components from ESD and transient voltage events.Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.

Features

Small Body Outline Dimensions.
Low Body Height.
Peak Power up to 350 Watts @ 8 x 20 μs Pulse.
Low Leakage current.
Response Time is Typically < 1 ns.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
RoHS compliant package Complies with the following standards IEC61000-4-2 Level 4 15 kV (air discharge) 8 kV(contact discharge) MIL STD 883E - Method 3015-7 Class 3 25 kV HBM (Human Body Model).
