Bt451 Monolithic CMOS 256-Color Palette RAMDAC

Bt451 Description

Bt451 Bt457 125 MHz/135 MHz/165 MHz Monolithic CMOS 256 Color Palette RAMDAC Bt458 The Bt457 and Bt458 are pin and software-compatible RAMDACs desi.
Pin Descriptions The Bt4978 is available in both 84-pin Plastic Leaded Chip Carrier (PLCC) and Ceramic PGA packages, as illustrated in Figure 1 and 2.

Bt451 Features

* include programmable blink rates, bit plane masking and blinking, color overlay capability, and a dual-port color palette RAM. Functional Block Diagram CLOCK
* CLOCK VAA GND FSADJUST VREF Distinguishing Features
* 165, 135, 125, 110, 80 MHz operation
* 4:1 or 5:1 input mux

Bt451 Applications

* High-resolution color graphics
* CAE/CAD/CAM
* Image processing
* Video reconstruction LD
* P[7:0] 40 (A-E) OL[1,0] 10 (A-E) SYNC
* BLANK
* CLOCK Load Control 40 40 Latch Latch 10 10 MUX Control Blink Control 8 8 MUX Read Blink Mask Mask 2 2

📥 Download Datasheet

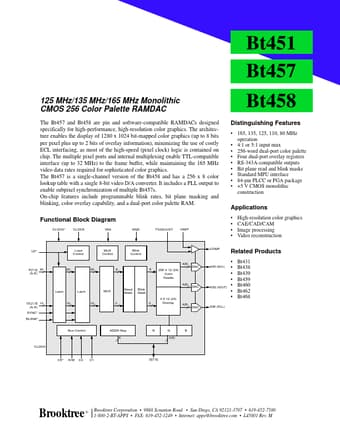

Preview of Bt451 PDF
