ALMD-EG2E, ALMD-EG1E Amber LED Lamp

Broadcom

Description

ALMD-EG1E/2E, ALMD-EL1E/2E High Brightness SMT Round Red, Amber LED Lamps Data Sheet .
The Broadcom® ALMD-Ex1E/2E series is essentially like a conventional high brightness through holes LED in the form of surface mount device.

📥 Download Datasheet

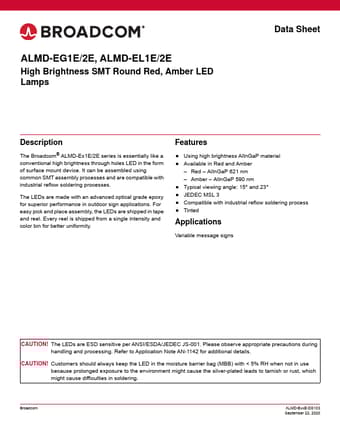

ALMD-EG2E Datasheet Preview — This datasheet PDF includes multiple part numbers: ALMD-EG2E, ALMD-EG1E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ALMD-EG2E, ALMD-EG1E
Manufacturer: Broadcom
File Size: 1.50 MB
Datasheet: ALMD-EG1E-Broadcom.pdf
Description: Amber LED Lamp
Note: This datasheet PDF includes multiple part numbers: ALMD-EG2E, ALMD-EG1E.
Please refer to the document for exact specifications by model.

Features

* Using high brightness AlInGaP material
* Available in Red and Amber
* Red
* AlInGaP 621 nm
* Amber
* AlInGaP 590 nm
* Typical viewing angle: 15° and 23°
* JEDEC MSL 3
* Compatible with industrial reflow soldering process
