5962-9314002

The 5962-9314002 is Power MOSFET Optocoupler designed by Broadcom.

Product Overview

Broadcom

Datasheet Details

Part number	5962-9314002, 5962-9314001
Manufacturer	Broadcom
File Size	617.43 KB
Description	Power MOSFET Optocoupler
Datasheet	5962-9314001-Broadcom.pdf
Note	This datasheet PDF includes multiple part numbers: 5962-9314002, 5962-9314001. Please refer to the document for exact specifications by model.

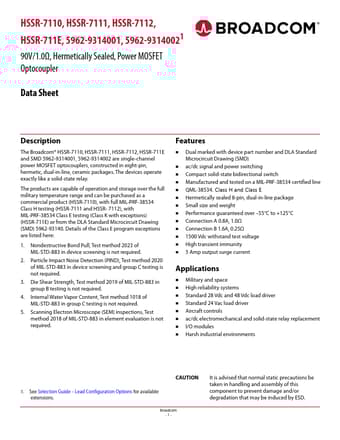

Additional preview pages of the 5962-9314002 datasheet.

Product details

Description

The Broadcom® HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E and SMD 5962-9314001, 5962-9314002 are single-channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-in-line, ceramic packages.

Features

Dual marked with device part number and DLA Standard Microcircuit Drawing (SMD).
ac/dc signal and power switching.
Compact solid-state bidirectional switch.
Manufactured and tested on a MIL-PRF-38534 certified line.
QML-38534, Class H and Class E.
Hermetically sealed 8-pin, dual-in-line package.
Small size and weight.
Performance guaranteed over.
55°C to +125°C.
Connection A 0.8A, 1.0Ω.
Connection B 1.6A, 0.25Ω.
1500 Vdc withstand t.
