UDD32C03L01-HT - Electrostatic Discharged Protection Devices

Brightking

The UDD32C03L01-HT by Brightking is a Electrostatic Discharged Protection Devices. Below is the official datasheet preview.

📥 Download Datasheet

UDD32C03L01-HT Electrostatic Discharged Protection Devices by Brightking - Datasheet Preview — Official preview page of the **UDD32C03L01-HT** Electrostatic Discharged Protection Devices datasheet (Brightking).

Datasheet Details

Part number	UDD32C03L01-HT
Manufacturer	Brightking
File Size	254.41 KB
Description	Electrostatic Discharged Protection Devices
Datasheet	UDD32C03L01-HT-Brightking.pdf

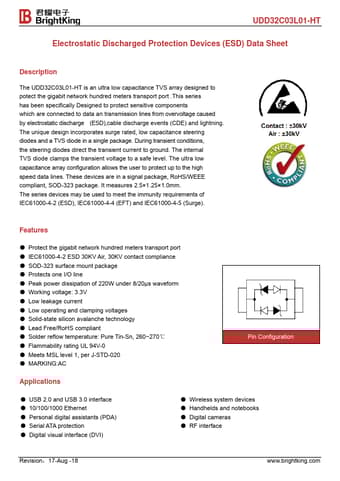

Additional preview pages of the UDD32C03L01-HT datasheet.

UDD32C03L01-HT Product details

Description

The UDD32C03L01-HT is an ultra low capacitance TVS array designed to potect the gigabit network hundred meters transport port .This series has been specifically Designed to protect sensitive components which are connected to data an transmission lines from overvoltage caused by electrostatic discharge (ESD),cable discharge events (CDE) and lightning.

Features

Protect the gigabit network hundred meters transport port.
IEC61000-4-2 ESD 30KV Air, 30KV contact compliance.
SOD-323 surface mount package.
Protects one I/O line.
Peak power dissipation of 220W under 8/20μs waveform.
Working voltage: 3.3V.
Low leakage current.
Low operating and clamping voltages.
Solid-state silicon avalanche technology.
Lead Free/RoHS compliant.
Solder reflow temperature: Pure Tin-Sn, 260~270℃.
Flammability rating.
