RL622-182K-RC, RL622-1R0K-RC - Radial Lead RF Choke

Bourns

Datasheet Details

Part number	RL622-182K-RC, RL622-1R0K-RC
Manufacturer	Bourns
File Size	306.13 KB
Description	Radial Lead RF Choke
Datasheet	RL622-1R0K-RC-Bourns.pdf
Note	This datasheet PDF includes multiple part numbers: RL622-182K-RC, RL622-1R0K-RC. Please refer to the document for exact specifications by model.

Formerly model.
Current rating up to 10 A.
Inductance range: 1 µH to 100,000 µH.
RoHS compliant.

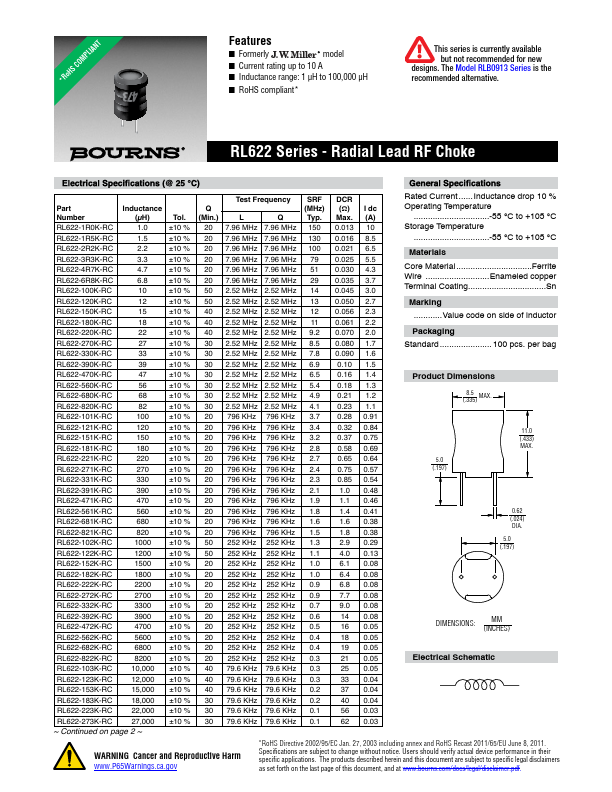

This series is currently available but not recommended for new designs. The Model RLB0913 Series is the recommended alternative. RL622 Series - Radial Lead RF Choke Test Frequency SRF DCR Part Number Inductance Q (μH) Tol. (Min. ) L (MHz) (Ω) I dc Q Typ. Max. (A) RL622-1R0K-RC 1.0 ±10 % 20 7.96 MHz 7.96 MHz 150 0.013 10 RL622-1R5K-RC 1.5 ±10 % 20 7.96 MH.
