PDB181-A - Rotary Potentiometer

Download the PDB181-A datasheet PDF. This datasheet also covers the PDB18 variant, as both devices belong to the same rotary potentiometer family and are provided as variant models within a single manufacturer datasheet.

Features

  • n Single and dual section control n Metal shaft styles n Carbon element n Center and multiple detent options n Wide range of resistance tapers n Plain or knurled shaft options PDB18 Series - 17 mm Rotary Potentiometer Additional Information Click these links for more information:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PDB18-Bourns.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PDB181-A
Manufacturer Bourns
File Size 829.72 KB
Description Rotary Potentiometer
Datasheet download datasheet PDB181-A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PDB1003 SMD POWER INDUCTORS Superworld Electronics
PDB1005 POWER TRANSFORMER Superworld Electronics
PDB1011 SMD POWER INDUCTORS Superworld Electronics
PDB1507 SMD POWER INDUCTORS Superworld Electronics
PDB1511 SMD POWER INDUCTORS Superworld Electronics

Other Datasheets by Bourns

Part Number Description
PDB181-B Rotary Potentiometer
PDB181-D Rotary Potentiometer
PDB181-E Rotary Potentiometer
PDB181-K Rotary Potentiometer
PDB181-P Rotary Potentiometer

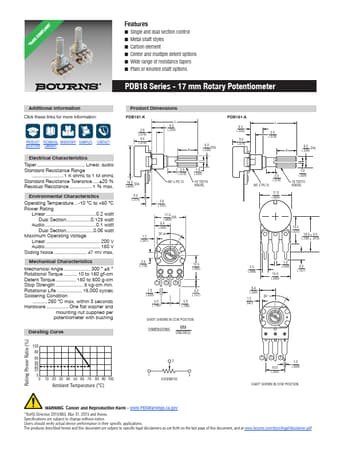

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features n Single and dual section control n Metal shaft styles n Carbon element n Center and multiple detent options n Wide range of resistance tapers n Plain or knurled shaft options PDB18 Series - 17 mm Rotary Potentiometer Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES CONTACT SELECTOR LIBRARY Electrical Characteristics Taper..................................... Linear, audio Standard Resistance Range ........................ 1 K ohms to 1 M ohms Standard Resistance Tolerance......±20 % Residual Resistance.................. 1 % max. Environmental Characteristics Operating Temperature....-10 °C to +50 °C Power Rating Linear......................................0.2 watt Dual Section...................0.125 watt Audio...............
