MOV-20D102K - Metal Oxide Varistor

Download the MOV-20D102K datasheet PDF. This datasheet also covers the MOV-20DxxK variant, as both devices belong to the same metal oxide varistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • n High voltage and current rating n Straight and kinked lead styles available n Bidirectional n Surge protection n Fast response time n RoHS compliant.
  • n Agency listing: Additional Information Click these links for more information:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MOV-20DxxK_Bourns.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Bourns

Part Number Description
MOV-20D101K Metal Oxide Varistor
MOV-20D112K Metal Oxide Varistor
MOV-20D121K Metal Oxide Varistor
MOV-20D151K Metal Oxide Varistor
MOV-20D152K Metal Oxide Varistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

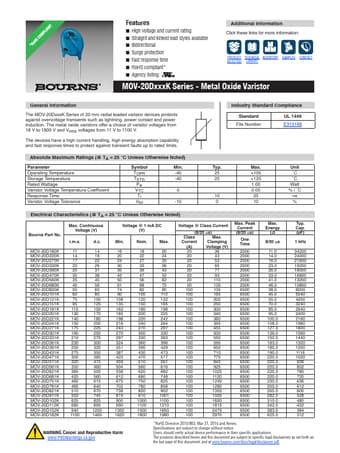

20D201K 5 Features n High voltage and current rating n Straight and kinked lead styles available n Bidirectional n Surge protection n Fast response time n RoHS compliant* n Agency listing: Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES CONTACT SELECTOR LIBRARY MOV-20DxxxK Series - Metal Oxide Varistor General Information The MOV-20DxxxK Series of 20 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 1800 V and Vrms voltages from 11 V to 1100 V.
