GDT225EX-50 - Very High Energy Gas Discharge Tube Arrestor

Bourns

The GDT225EX-50 by Bourns is a Very High Energy Gas Discharge Tube Arrestor. Below is the official datasheet preview.

📥 Download Datasheet

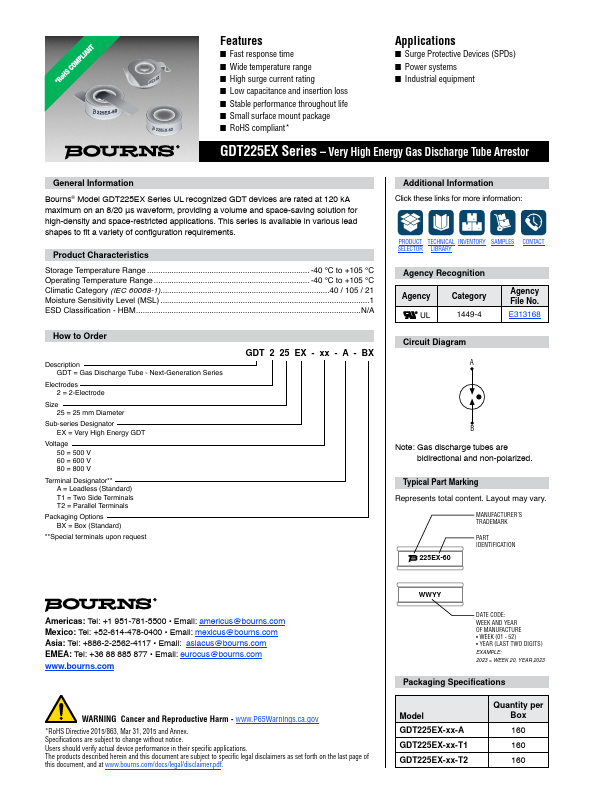

GDT225EX-50 Very High Energy Gas Discharge Tube Arrestor by Bourns - Datasheet Preview — Official preview page of the **GDT225EX-50** Very High Energy Gas Discharge Tube Arrestor datasheet (Bourns).

Datasheet Details

Part number	GDT225EX-50
Manufacturer	Bourns
File Size	474.68 KB
Description	Very High Energy Gas Discharge Tube Arrestor
Datasheet	GDT225EX-50-Bourns.pdf

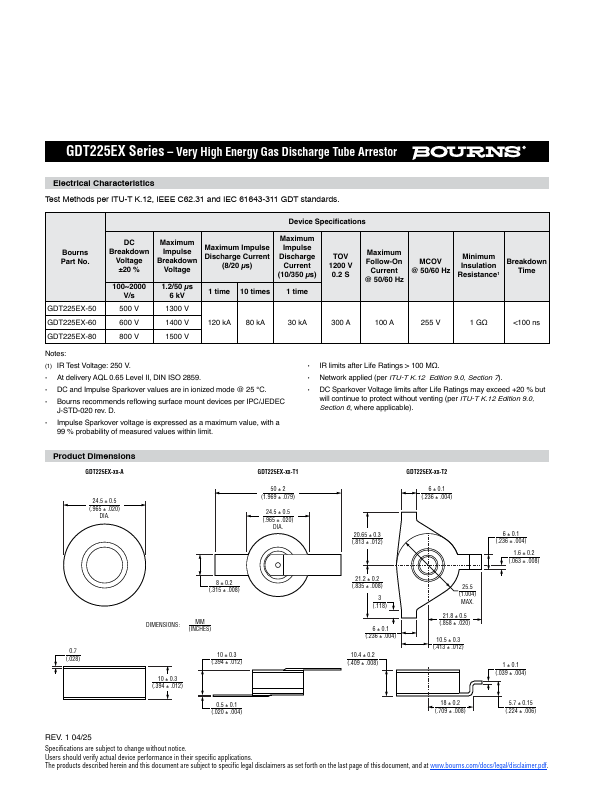

Additional preview pages of the GDT225EX-50 datasheet.

GDT225EX-50 Product details

Description

GDT = Gas Discharge Tube - Next-Generation Series Electrodes 2 = 2-Electrode Size 25 = 25 mm Diameter Sub-series Designator EX = Very High Energy GDT Voltage 50 = 500 V 60 = 600 V 80 = 800 V Terminal Designator A = Leadless (Standard) T1 = Two Side Terminals T2 = Parallel Terminals Packaging Options BX = Box (Standard) Special terminals upon request GDT 2 25 EX - xx - A - BX Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES

Features

Fast response time.
Wide temperature range.
High surge current rating.
Low capacitance and insertion loss.
Stable performance throughout life.
Small surface mount package.
RoHS compliant.
