BDW24C, BDW24 Datasheet - Bourns

BDW24_BournsElectronicSolutions.pdf

BDW24C Datasheet Preview — This datasheet PDF includes multiple part numbers: BDW24C, BDW24. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BDW24C, BDW24

Manufacturer:

Bourns

File Size:

245.87 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: BDW24C, BDW24.
Please refer to the document for exact specifications by model.

BDW24C, BDW24, PNP Transistor

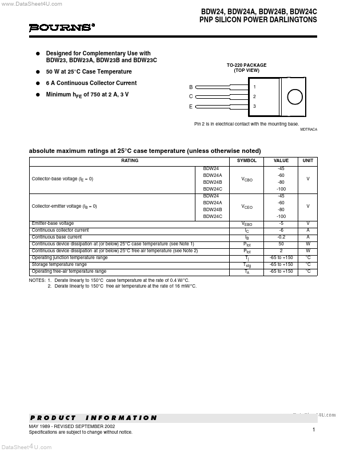

www.DataSheet4U.com BDW24, BDW24A, BDW24B, BDW24C PNP SILICON POWER DARLINGTONS Designed for Complementary Use with BDW23, BDW23A, BDW23B and BDW23C 50 W at 25°C Case Temperature 6 A Continuous Collector Current Minimum hFE of 750 at 2 A, 3 V TO-220 PACKAGE (TOP VIEW) B 1 C 2 E 3 Pin 2 is in electrical contact with the mounting base.

MDTRACA absolute maximum ratings at 25°C case temperature (unless otherwise noted) RATING Collector-base voltage (IE = 0) Colle
