BL758L - INTEGRATED SYMMETRICAL AND ASYMMETRICAL BIDIRECTIONAL OVERVOLTAGE PROTECTORS

Description

The TISPL758LF3 is an integrated combination of a symmetrical bidirectional overvoltage protector and an asymmetrical bidirectional overvoltage protector.

It is designed to limit the peak voltages on the line terminals of the Lucent Technologies L7581/2/3 LCAS (Line Card Access Switches).

📥 Download Datasheet

Datasheet Details

Part number BL758L
Manufacturer Bourns
File Size 293.37 KB
Description INTEGRATED SYMMETRICAL AND ASYMMETRICAL BIDIRECTIONAL OVERVOLTAGE PROTECTORS
Datasheet download datasheet BL758L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BL75R02 512 EEPROM radio frequency identification SHANGHAI BELLING
BL75R04SM 2K-bit EEPROM RFID Label IC SHANGHAI BELLING
BL75R05 13.56MHZ Long range RFID Label IC SHANGHAI BELLING
BL75R06SM Contactless smart-card SHANGHAI BELLING
BL7430EC 104 intelligent counter circuit SHANGHAI BELLING

Other Datasheets by Bourns

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

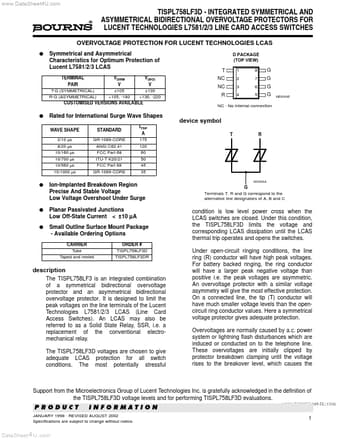

www.DataSheet4U.com TISPL758LF3D - INTEGRATED SYMMETRICAL AND ASYMMETRICAL BIDIRECTIONAL OVERVOLTAGE PROTECTORS FOR LUCENT TECHNOLOGIES L7581/2/3 LINE CARD ACCESS SWITCHES OVERVOLTAGE PROTECTION FOR LUCENT TECHNOLOGIES LCAS q Symmetrical and Asymmetrical Characteristics for Optimum Protection of Lucent L7581/2/3 LCAS TERMINAL VDRM V(BO) V V PAIR T-G (SYMMETRICAL) ±105 ±130 R-G (ASYMMETRICAL) +105, -180 +130, -220 CUSTOMISED VERSIONS AVAILABLE D PACKAGE (TOP VIEW) T NC NC R 1 2 3 4 8 7 6 5 G G G G MDXXAE NC - No internal connection q Rated for International Surge Wave Shapes WAVE SHAPE 2/10 µs 8/20 µs 10/160 µs 10/700 µs 10/560 µs 10/1000 µs STANDARD GR-1089-CORE ANSI C62.
