CY100 - 8-Channel 10-bit A/D Converter

Bosch

The CY100 by Bosch is a 8-Channel 10-bit A/D Converter. Below is the official datasheet preview.

📥 Download Datasheet

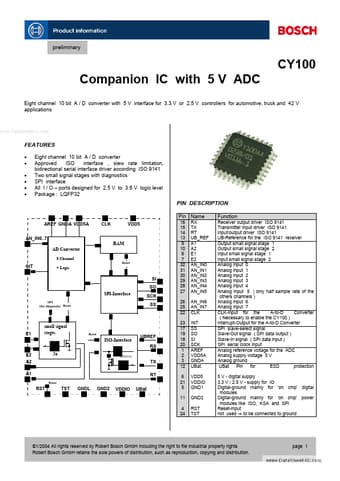

CY100 8-Channel 10-bit A/D Converter by Bosch - Datasheet Preview — Official preview page of the **CY100** 8-Channel 10-bit A/D Converter datasheet (Bosch).

Datasheet Details

Part number	CY100
Manufacturer	Bosch
File Size	356.11 KB
Description	8-Channel 10-bit A/D Converter
Datasheet	CY100_Bosch.pdf
Additional preview pages of the CY100 datasheet.

CY100 Product details

Description

Pin Name AREF GNDA VDD5A AN_IN0..7 RAM AD Converter 8 Channel Reset Function Receiver output driver ISO 9141 Transmitter input driver ISO 9141 Input/output driver ISO 9141 UB-Reference for the ISO 9141 receiver Output small signal stage 1 Output small signal stage 2 Input small signal stage 1 Input small signal stage 2 Analog input 0 Analog input 1 Analog input 2 Analog input 3 Analog input 4 Analog input 5 ( only half sample rate of the others channels ) Analog input 6 Analog input 7 CLK-input

Features

Eight channel 10 bit A / D converter Approved ISO interface , slew rate limitation, bidirectional serial interface driver according ISO 9141 Two small signal stages with diagnostics SPI interface All I / O.
ports designed for 2.5 V to 3.6 V logic level Package : LQFP32 PIN.
