BT849A, BT848 - Single-Chip Video Capture

📥 Download Datasheet

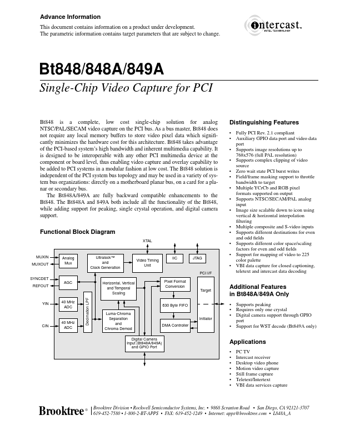

BT849A Datasheet Preview — This datasheet PDF includes multiple part numbers: BT849A, BT848. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BT849A, BT848
Manufacturer	Booktree
File Size	1.12 MB
Description	Single-Chip Video Capture
Datasheet	BT848_ETC.pdf
Note	This datasheet PDF includes multiple part numbers: BT849A, BT848. Please refer to the document for exact specifications by model.

BT849A Product details

Description

.

Features

Fully PCI Rev. 2.1 compliant.
Auxiliary GPIO data port and video data port.
Supports image resolutions up to 768x576 (full PAL resolution).
Supports complex clipping of video source.
Zero wait state PCI burst writes.
Field/frame masking support to throttle bandwidth to target.
Multiple YCrCb and RGB pixel formats supported on output.
Supports NTSC/SECAM/PAL analog input.
Image size scalable down to icon using verti.
