BM7536, BM7530 - 100mA Low Power LDO

BM7536 Description

BM 75xx Series 100mA Low Power LDO .
The 75XX series is a set of three-terminal high current low voltage regulator implemented in CMOS technology.

BM7536 Features

* Low power consumption
* Low voltage drop
* Low temperature coefficient

BM7536 Applications

* Battery-powered equipment
* Communication equipment
* High output current : 100mA (Pd £ 250mW)
* Output voltage accuracy: tolerance ±3%
* TO-92, SOT-89 and SOT-23, SOT25 package 300mA, 5V 3.3V . 100mA, 12V 5.0V .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BM7536, BM7530. Please refer to the document for exact specifications by model.

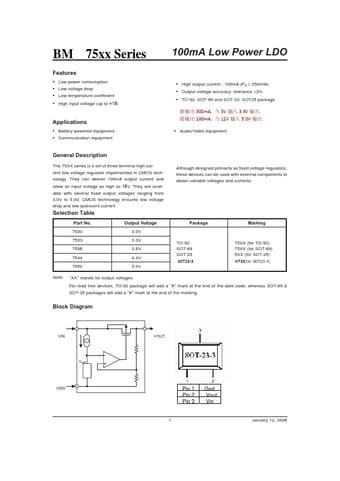

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM7536, BM7530
Manufacturer
Bookly
File Size
197.65 KB
Datasheet
BM7530-Bookly.pdf
Description
100mA Low Power LDO
Note
This datasheet PDF includes multiple part numbers: BM7536, BM7530.
Please refer to the document for exact specifications by model.
