LC96A1070-20R, LC96A10x0-20R - 400mW 1060nm / 1070nm High Power Laser Diode Module

Bookham

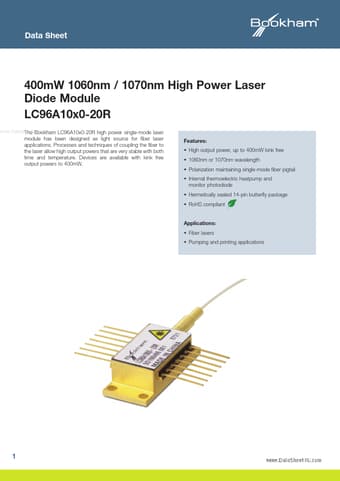

📥 Download Datasheet

LC96A1070-20R Datasheet Preview — This datasheet PDF includes multiple part numbers: LC96A1070-20R, LC96A10x0-20R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LC96A1070-20R, LC96A10x0-20R
Manufacturer	Bookham
File Size	319.65 KB
Description	400mW 1060nm / 1070nm High Power Laser Diode Module
Datasheet	LC96A10x0-20R_Bookham.pdf
Note	This datasheet PDF includes multiple part numbers: LC96A1070-20R, LC96A10x0-20R. Please refer to the document for exact specifications by model.

LC96A1070-20R Product details

Description

Peltier cooler (+) Thermistor Monitor anode (-) Monitor cathode (+) Thermistor Not connected Not connected Pin # 8 9 10 11 12 13 14 Description Not connected Not connected Laser anode (+) Laser cathode (-) Not connected Case ground Peltier cooler (-) 3 Data Sheet RoHS Compliance Bookham is fully committed to environment protection and sustainable development and has www.DataSheet4U.com set in place a comprehensive program for removing polluting and hazardous substances from all of its produ

Features

High output power, up to 400mW kink free.
1060nm or 1070nm wavelength.
Polarization maintaining single-mode fiber pigtail.
Internal thermoelectric heatpump and monitor photodiode.
Hermetically sealed 14-pin butterfly package.
RoHS compliant.
