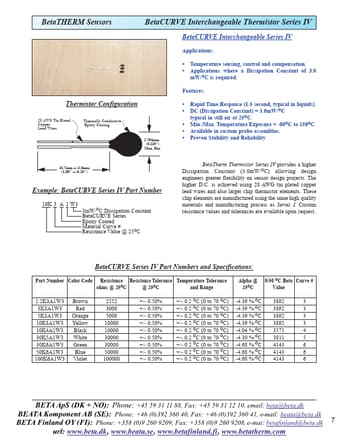

2.2K3A1W3, 3K3A1 - Chip Thermistors

Datasheet Details

Part number	2.2K3A1W3, 3K3A1
Manufacturer	BetaTHERM
File Size	207.47 KB
Description	Chip Thermistors
Datasheet	3K3A1-xx.pdf
Note	This datasheet PDF includes multiple part numbers: 2.2K3A1W3, 3K3A1. Please refer to the document for exact specifications by model.

Rapid Time Response (1.5 second, typical in liquids).
DC (Dissipation Constant) = 3.0mW/oC typical in still air at 25oC.
Min. /Max. Temperature Exposure = -80oC to 150oC.
Available in custom probe assemblies.
Proven Stability and Reliability 45.7mm +/-5.0mm (1.80" +/-0.20") Example: BetaCURVE Series IV Part Number 10K 3 A 1 W3 3mW/oC Dissipation Constant BetaCURVE Series Epoxy Coated Material Curve # Resistance Value @ 25oC BetaTherm Thermistor Series IV p.
