10K3A1AM

The 10K3A1AM is Chip Thermistors designed by BetaTHERM.

Product Overview

Part number	10K3A1AM
Manufacturer	BetaTHERM
File Size	185.76 KB
Description	Chip Thermistors
Datasheet	10K3A1AM-BetaTHERM.pdf

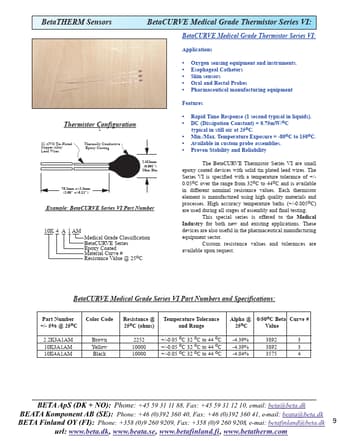

Additional preview pages of the 10K3A1AM datasheet.

Thermistor C onfiguration 32 AWG Tin Plated Copper Alloy Lead Wires Thermally Conductive Epoxy Coating 2.413mm (0.095") Max. Dia. 76.2mm +/-3.3mm (3.00" +/-0.13") Example: BetaCURVE Series VI Part Number 10K 4 A 1 AM Medical Grade Classification BetaCURVE Series Epoxy Coated Material Curve # Resistance Value @ 25oC.
Rapid Time Response (1 second typical in liquids).
DC (Dissipation Constant) = 0.75mW/oC typical in still air at 25oC.
Min. /Max. Temperature Exposure =.
