BS-115C - Miniature Relay

Datasheet Summary

Features

  • Ultra-miniature size (18.8.
  • 15.4.
  • 15.1 mm) High Switching Capacity up to 12A UL File No. E147052 CSA File No. LR76479-1 TUV File No. R9754066 Coil Rating (at 20°C) Nominal Voltage (VDC) 3 5 6 9 12 24 48 Coil Resistance (Ω ± 10%) 25 70 100 220 400 1600 6400 Nominal Current (mA) 120 72 60 40 30 15 7.5 Pick-Up Voltage (VDC) 2.25 3.75 4.50 6.75 9.00 18.00 36.00 Drop-Out Voltage (VDC) 0.3 0.5 0.6 0.9 1.2 2.4 4.8 360 Nominal Power (mW) Consumption.
  • Orderi.

📥 Download Datasheet

Datasheet preview – BS-115C

Datasheet Details

Part number BS-115C
Manufacturer Bestar
File Size 634.87 KB
Description Miniature Relay
Datasheet download datasheet BS-115C Datasheet
Additional preview pages of the BS-115C datasheet.

📁 Similar Datasheet

  • BS-A282ND - 7.00mm (0.28) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A283RD-A - 7.00mm (0.28) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A283RD-B - 7.00mm (0.28) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A284ND - 7.10mm (0.28) high single segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A286RD-B - 7.00mm (0.28) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A303RD - 7.62mm (0.30) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A304RD-A - 7.62mm (0.30) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A305RD - 7.62mm (0.30) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A305RD-A - 7.62mm (0.30) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
  • BS-A306RD - 7.62mm (0.30) high single digit seven segments dispaly (BRIGHT LED ELECTRONICS)
Other Datasheets by Bestar

    Full PDF Text Transcription

    Click to expand full text

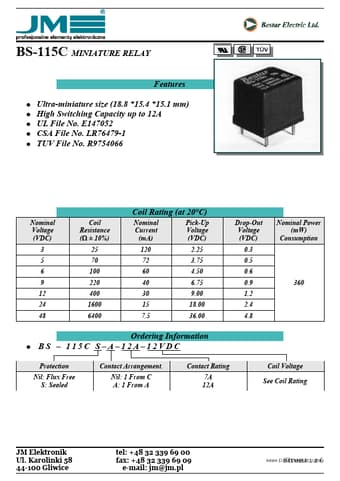

    BS-115C MINIATURE RELAY www.DataSheet4U.com Features ● ● ● ● ● Ultra-miniature size (18.8 *15.4 *15.1 mm) High Switching Capacity up to 12A UL File No. E147052 CSA File No. LR76479-1 TUV File No. R9754066 Coil Rating (at 20°C) Nominal Voltage (VDC) 3 5 6 9 12 24 48 Coil Resistance (Ω ± 10%) 25 70 100 220 400 1600 6400 Nominal Current (mA) 120 72 60 40 30 15 7.5 Pick-Up Voltage (VDC) 2.25 3.75 4.50 6.75 9.00 18.00 36.00 Drop-Out Voltage (VDC) 0.3 0.5 0.6 0.9 1.2 2.4 4.8 360 Nominal Power (mW) Consumption ● Ordering Information BS – 115C S–A–12A–12VDC Protection Nil: Flux Free S: Sealed Contact Arrangement. Nil: 1 From C A: 1 From A Contact Rating 7A 12A Coil Voltage See Coil Rating JM Elektronik Ul.
