BQ2004H, BQ2004E - Fast Chargeer

Name: BQ2004H
SKU: BQ2004H-1418713

📥 Download Datasheet

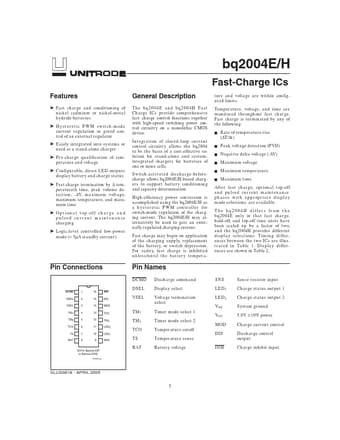

BQ2004H Datasheet Preview — This datasheet PDF includes multiple part numbers: BQ2004H, BQ2004E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BQ2004H, BQ2004E
Manufacturer	Benchmarq
File Size	665.69 KB
Description	Fast Chargeer
Datasheet	BQ2004E-Benchmarq.pdf
Note	This datasheet PDF includes multiple part numbers: BQ2004H, BQ2004E. Please refer to the document for exact specifications by model.

BQ2004H Product details

Description

The bq2004E and bq2004H Fast Charge ICs provide comprehensive fast charge control functions together with high-speed switching power control circuitry on a monolithic CMOS device.

Features

Fast charge and conditioning of nickel cadmium or nickel-metal hydride batteries.
Hysteretic PWM switch-mode current regulation or gated control of an external regulator.
Easily integrated into systems or used as a stand-alone charger.
Pre-charge qualification of temperature and voltage.
Configurable, direct LED outputs display battery and charge status.
Fast-charge termination by ∆ temperature/∆ time, peak volume detection, -∆V, maximum vol.
