PSR242, PSR54 - Positive Switching Regulator

Bel Fuse

PSR242 Datasheet Preview — This datasheet PDF includes multiple part numbers: PSR242, PSR54. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PSR242, PSR54
Manufacturer	Bel Fuse
File Size	1.96 MB
Description	Positive Switching Regulator
Datasheet	PSR54-BelFuse.pdf
Note	This datasheet PDF includes multiple part numbers: PSR242, PSR54. Please refer to the document for exact specifications by model.

PSR242 Product details

Description

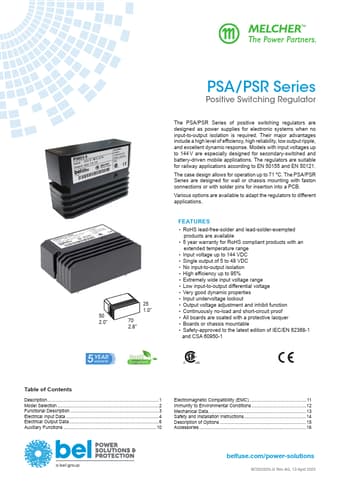

Model Selection2 Functional Description3 Electrical Input Data4 Electrical Output Data6 Auxiliary Functions10 Electromagnetic Compatibility (EMC) 11 Immunity to Environmental Conditions12 Mechanical Data13 Safety and Installation Instructions14 Description of Options15 Accessories16 belfuse.com/power-solutions BCD20025-G Rev AG, 13 April 2022 PSA/PSR Series Positive Switching Regulator MODEL

Features

RoHS lead-free-solder and lead-solder-exempted products are available.
5 year warranty for RoHS compliant products with an extended temperature range.
Input voltage up to 144 VDC.
Single output of 5 to 48 VDC.
No input-to-output isolation.
High efficiency up to 95%.
Extremely wide input voltage range.
Low input-to-output differential voltage.
Very good dynamic properties.
Input undervoltage lockout.
