BK2421 - Low Power High Performance 2.4 GHz GFSK Transceiver

BK2421 Description

BK2421 Low Power High Performance 2.4 GHz GFSK Transceiver .

BK2421 Features

* Pin Assignments
* 2400-2483.5 MHz ISM band operation
* Support 1 and 2 Mbps air data rate
* Programmable output power (-40dBm to 5dBm)
* Low power consumption
* Tolerate +/- 60ppm 16 MHz crystal
* Variable payload length from 1 to 32bytes
* Automatic packet processing

BK2421 Applications

* Wireless PC peripherals
* Wireless mice and keyboards
* Wireless gamepads
* Wireless audio
* VOIP and wireless headsets Block Diagram VSS CDVDD VDD 20 19 18 VSS IREF 17 16 CE 1 CSN 2 SCK 3 MOSI 4 MISO 5 BK2421 15 VDD 14 VSS 13 RFN 12 RFP 11 VDDPA 6 7 8 9 10 IRQ VDD VSS XT

📥 Download Datasheet

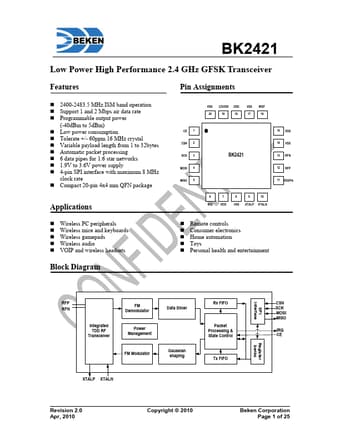

Preview of BK2421 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BK2421
Manufacturer
Beken
File Size
650.55 KB
Datasheet
BK2421-Beken.pdf
Description
Low Power High Performance 2.4 GHz GFSK Transceiver
