PVL500PQ - Photoelectric Sensor

Download the PVL500PQ datasheet PDF (PVL225PBanner included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for photoelectric sensor.

Description

P/N 165037_web Rev.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PVL225PBanner.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PVL500PQ
Manufacturer Banner
File Size 390.60 KB
Description Photoelectric Sensor
Datasheet download datasheet PVL500PQ Datasheet

📁 Similar Datasheet

  • PVL54I90 - 3.3V PECL VCXO (Connor-Winfield)
  • PVL225P - photoelectric sensor (Turck)
Other Datasheets by Banner

Full PDF Text Transcription

Click to expand full text

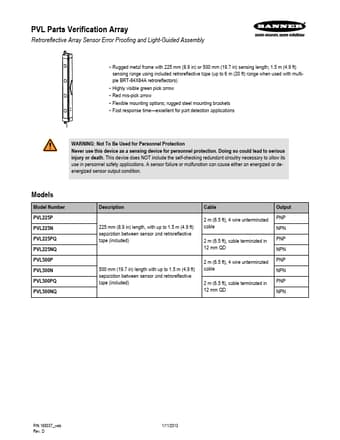

PVL Parts Verification Array Retroreflective Array Sensor Error Proofing and Light-Guided Assembly • Rugged metal frame with 225 mm (8.9 in) or 500 mm (19.7 in) sensing length; 1.5 m (4.9 ft) sensing range using included retroreflective tape (up to 6 m (20 ft) range when used with multiple BRT-84X84A retroreflectors) • Highly visible green pick arrow • Red mis-pick arrow • Flexible mounting options; rugged steel mounting brackets • Fast response time—excellent for part detection applications WARNING: Not To Be Used for Personnel Protection Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death. This device does NOT include the self-checking redundant circuitry necessary to allow its use in personnel safety applications.
