BCT4223 Dual-SPDT Analog Switch

BCT4223 Description

May, 2008, REV0.0 BCT4223 Low-Voltage, 0.4Ω Dual-SPDT Analog Switch General .
The BCT4223 is a high-performance, dual single-pole double-throw (SPDT) analog switch.

BCT4223 Features

* Low ON Resistance: 0.4-ohms at 4.2V
* Wide VCC Range: 1.65V to 4.3V
* Rail-to-Rail Signal Range
* ON-Resistance Matching: 0.04 Ω (TYP)
* ON-Resistance Flatness: 0.08Ω (TYP)
* High Off Isolation: 57dB at 10MHz
* 54dB (10MHz) Crosstalk Rejectio

BCT4223 Applications

* include battery powered equipment that benefit from ultra low ON-resistance(0.4Ω) and fast switching speeds. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. Applications Cell Phones PDAs Portable Instrumentation Bat

📥 Download Datasheet

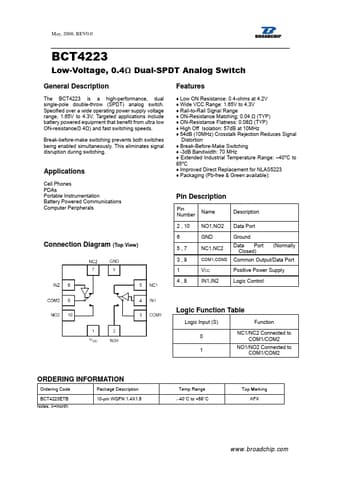

BCT4223 Datasheet Preview — Preview of BCT4223 PDF

Datasheet Details

Part number: BCT4223
Manufacturer: BROADCHIP
File Size: 286.05 KB
Datasheet: BCT4223-BROADCHIP.pdf
Description: Dual-SPDT Analog Switch
