BCT2358 - Rail-to-Rail I/O CMOS Operational Amplifiers

Description

The BCT2358 (dual) is low cost, rail-to-rail input and output voltage feedback amplifiers.

It has a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V.

The maximum recommended supply voltage is 5.5V.

Features

  • Low Cost.
  • Rail-to-Rail Input and Output.
  • 0.8mV Typical Vos.
  • Unity Gain Stable.
  • Gain Bandwidth Product:1MHz.
  • Very Low Input Bias Current:10pA.
  • Supply Voltage Range:2.1V to 5.5V.
  • Input Voltage Range:-0.1V to +5.6V with VS=5.5V.
  • Low Supply Current:60uA/Amplifier.
  • Small Packaging: BCT2358 available in SOIC8.

📥 Download Datasheet

Datasheet Details

Part number BCT2358
Manufacturer BROADCHIP
File Size 334.45 KB
Description Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet download datasheet BCT2358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT2014 0.7uA Low Power Linear Regulators
BCT2019 RF-Linear Regulators
BCT2021 70dB PSRR 300mA Fast Response Linear Regulators
BCT2028 500mA Linear Regulators
BCT2031 RF-Linear Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

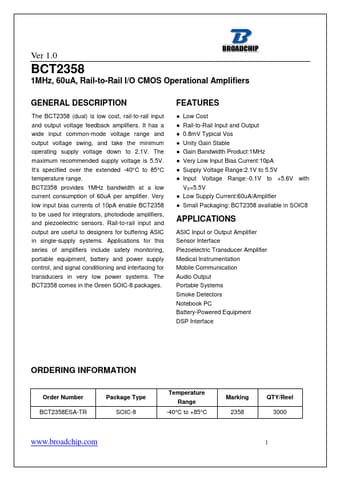

Ver 1.0 BCT2358 1MHz, 60uA, Rail-to-Rail I/O CMOS Operational Amplifiers GENERAL DESCRIPTION The BCT2358 (dual) is low cost, rail-to-rail input and output voltage feedback amplifiers. It has a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. It’s specified over the extended -40°C to 85°C temperature range. BCT2358 provides 1MHz bandwidth at a low current consumption of 60uA per amplifier. Very low input bias currents of 10pA enable BCT2358 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output are useful to designers for buffering ASIC in single-supply systems.
