BP3102 - High Precision PSR Constant Current LED Driver

BPS

📥 Download Datasheet

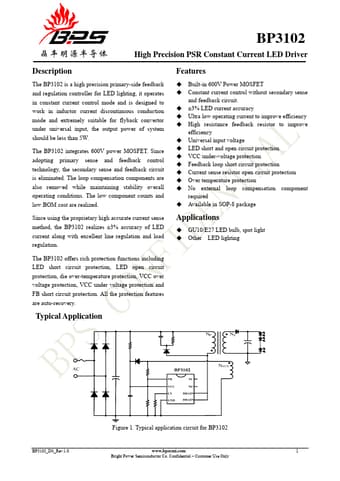

BP3102 Datasheet Preview — Preview of BP3102 PDF

Datasheet Details

Part number	BP3102
Manufacturer	BPS
File Size	453.67 KB
Description	High Precision PSR Constant Current LED Driver
Datasheet	BP3102_BPS.pdf

BP3102 Product details

Description

The BP3102 is a high precision primary-side feedback and regulation controller for LED lighting, it operates in constant current control mode and is designed to work in inductor current discontinuous conduction mode and extremely suitable for flyback convertor under universal input, the output power of system should be less than 5W.

Features

are auto-recovery. Features Built-in 600V Power MOSFET Constant current control without secondary sense and feedback circuit. ±3% LED current accuracy Ultra low operating current to improve efficiency High resistance feedback resistor to improve efficiency Universal input voltage LED short and open circuit protection VCC under-voltage protection Feedback loop short circuit protection Current sense resistor open circuit protection Over temperature protection No external.
